High Torque Geroller Gerotor Hydraulic Rotary Motor OMS200 151F0504

Name: High Torque Geroller Gerotor Hydraulic Rotary Motor OMS200 151F0504
Brand: HANJIU
Price: 1 USD

Buy cheap High Torque Geroller Gerotor Hydraulic Rotary Motor OMS200 151F0504 product

Brand Name : HANJIU

Model Number : BMS 200cc

Certification : CE

Place of Origin : China

MOQ : 10 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 80000 Pieces One Year

Packaging Details : Carton Box

Product Name : Orbit Hydraulic Motor BMS

Displacement : 80cc -500cc

Application : Road Sweeper

Contact Now

OMS200 151F0504 High Torque Geroller Gerotor Hydraulic Orbital Motor

Flange: 4-Ø13.5 rhomb flange Ø106.4

Pilot: 82.5

Shaft: Ø32

Oil port: G1/2"

Displacement: 200cc

► Specification

Same than OMS, M+S MS, Eaton 2000 Series

Type		BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

High Torque Geroller Gerotor Hydraulic Rotary Motor OMS200 151F0504

► Hanjiu Workshop

High Torque Geroller Gerotor Hydraulic Rotary Motor OMS200 151F0504

► Hanjiu Exhibition Booth

► Hanjiu BMS315 Motor

High quality products,Offer the lowest price,Protect customers profit and Offer the best after service are our principle.

We are looking for good long cooperation in the hydraulic field,very hope we can become good long partner.

Hope I can get your chance to have a good long cooperation.

Best regards,

Simon

Shijiazhuang Hanjiu Technology Co.,Ltd

Sale Director // E-mail: sales05@sjzhjsm.com // Skype: Simon-Hanjiu Hydraulics // WhatsApp: +86 15530109495 // Website:www.hjhydraulic.com

Product Tags:

orbital hydraulic motor

cycloid hydraulic motor

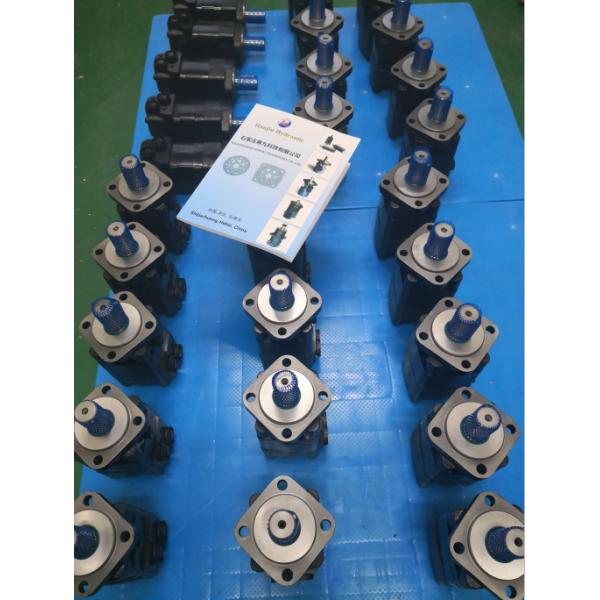

High Torque Geroller Gerotor Hydraulic Rotary Motor OMS200 151F0504 Images
