Hydraulic Winch Motor 125cc For Winches Of Wrecker / Flatbeds

Name: Hydraulic Winch Motor 125cc For Winches Of Wrecker Flatbeds
Brand: HANJIU
Price: 1 USD

Buy cheap Hydraulic Winch Motor 125cc For Winches Of Wrecker / Flatbeds product

Brand Name : HANJIU

Model Number : BMR-125-2AD

Certification : CE

Place of Origin : China

MOQ : 1 Pieces

Price : Contact seller to ask

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 35 work days

Packaging Details : Box, Pallet

Item : Wrecker Winch Parts

Type : Orbit motor

Direction : Left and right

Displacement : 50cc - 497cc

Fit : Winches for wrecker, flatbeds

Used for : Hydraulic System

Contact Now

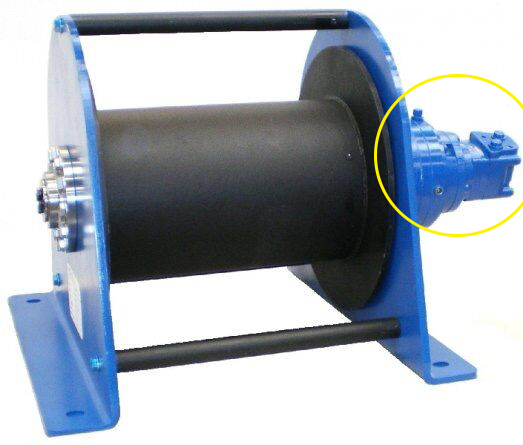

Hydraulic Winch Motor 125cc for winches of wrecker, flatbeds

125cc Hydraulic Motor, this motor can be usd for hydraulic winches of wrecker, flatbeds

Quick details:

BMR-125-2AD

Displacement: 125cc

Shaft: straight and flat key

Shaft: 25mm

Ports: G 1/2

TWO-BOLT SAE A FLANGE MOUNTING

The standard mounting is the widely used SAE A two hole flange.

Speed range 10 - 1400 rpm

Max. continuous pressure drop 70 - 175 bar

Max. Continuous torque 45 - 300 Nm

Here is specification:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

We supply motors we supply operate on the principle of an internal gear rotating within a fixed external gear. The internal gear transmits the torque generated by the application of pressure from the hydraulic oil fed into the motor which is then delivered via the motors output shaft.

The capacity of the motor you need will depend on factors including the pressure and the flow-rate of the hydraulic pump and the required performance (line speed) of the winch the motor is powering. Please contact us for guidance if in doubt.

Features include:

CONSTANT OPERATING TORQUE

Choosing the correct capacity of motor for your particular application will ensure an almost constant output torque across the operating speed range.

HIGH STARTING TORQUE

Torques from a stalled condition can be typically 80% of the equivalent running torque, ensuring good starting performance.

More Applications

• Mining conveyers

• Mobile mixer-feeders

• Steel handling equipment

• Ride-on concrete trowels

• Mobile concrete mixing

• Drill rig motors

• Injection molding

• Rock power crushers

• Concrete trowels

• Concrete screed

• Waste recycler

• Marine winches

• Direct wheel drive

– Crop sprayers

– Skid steer

– Harvesters

– Asphalt/concrete paving

machines

– Turf mowers

– All terrain vehicles
